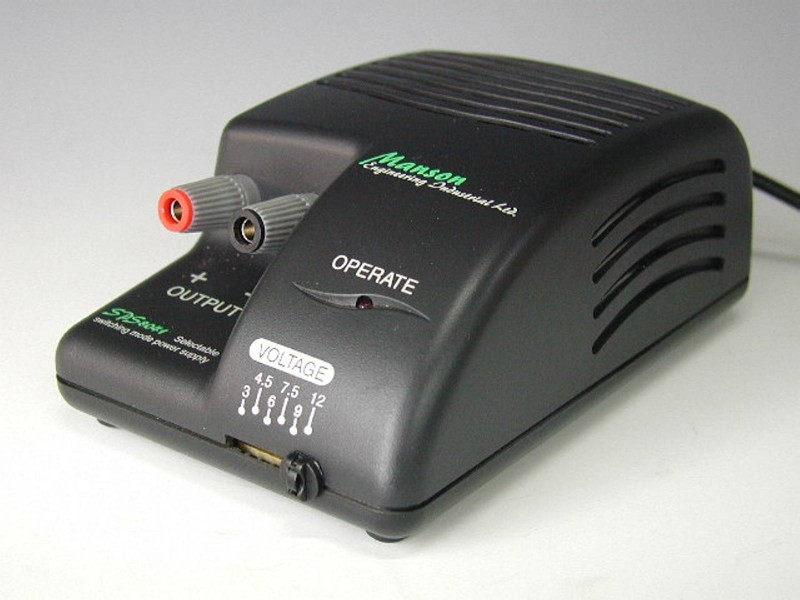

SPS-8041 Switching Mode with 4 Selectable Output Voltage

Feature

User selectable DC output3, 4.5, 6, 7.5, 9, 12VDC
Regulated stable output
Overload and short circuit protection
LED power on indicator
Poly-carbonate housing
Streamline design for desktop operation

Description

This portable, compact & light, regulated DC power supply provides a range of stable output voltages regardless of current drain to 3A continuous operation.
This output voltage is user selectable at the front panel. It is suitable for voltage sensitive devices like, CCTV cameras, Intercom, Scanners, CB Radios and Power supply for the hobbyist.
The latest switching mode circuitry makes this unit a High efficient, Reliable and Highly stable regulated power supply at a competitive price.

  • User selectable output voltages at 3, 4.5, 6, 7.5, 9, 12VDC
  • Continuous 3A operation
  • Overload and Short circuit protection
  • LED power on indicator
  • Poly-carbonate housing
  • Streamline design for desktop operation

Specification

Type
Switching Mode
Input Voltage
200 - 240VAC 50Hz~ (or on request)
Rated output power
60W
Number of output
1.0
Output Voltage range
3, 4.5, 6, 7.5, 9, 12VDC
Output Current range
5A max
Voltage load regulation
≤300mV
Current load regulation
-
Voltage line regulation
≤60mV
Current line regulation
-
Output ripple and noise
≤60mVp-p
Voltage Setting Resolution
3, 4.5, 6, 7.5, 9, 12VDC
Voltage meter digit and accuracy
Current Set Resolution
Current meter digit and accuracy
Extra output Voltage
Auto-range (con)
No
Constant Current mode
Yes
Remote programing
No
Connection type
Preset program
No
Internal program
No
Commend Set
Optimal Efficiency
-
Cooling Method
Natural Convection
Protections
Overload, Short Circuit
Floating ground
Yes
Approvals
CE EMC: EN 55022 LVD: EN 60950
Dimensions (WxHxD)
CE EMC: EN 55022 LVD: EN 60950
Weight
450g
