Description

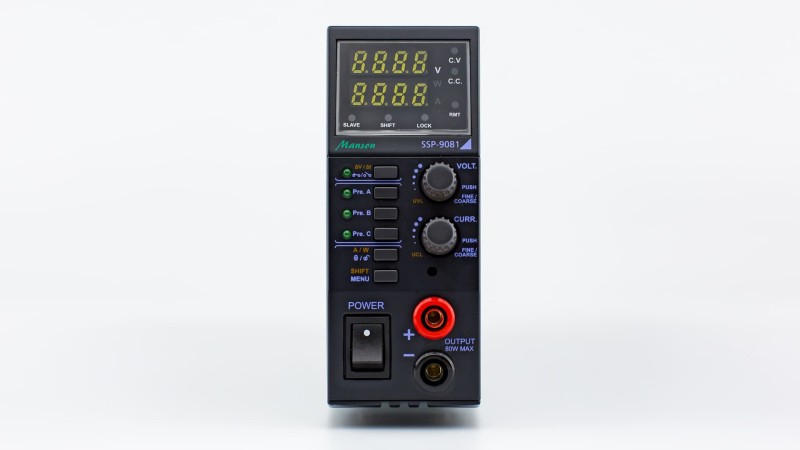

This 80W auto range lab. grade power supply has an automatic range of 0.5-36V and 0-5A. The max. limits of current & voltage are calculated by Imax x Vmax = 80W. Its operation voltage and current spectrum is larger than 3 conventional power supplies of the same power rating.
This multi-function auto range laboratory grade power supply is capable of generating various DC wave forms.
A micro-processor is used for such DC waveform. There are 10 voltage generators which can either be panel programmed or by PC via remote control port.
Remote Programming of repetitive cycling , control , monitoring and data logging can be done via the USB port.
With optional Ethernet card it is capable of Internet connectivity and control , monitor, data log over 250 supplies by one PC.
Application software of cyclic program , command sets , and Labview Drivers are provided. As a 80W Constant Power laboratory grade power supply it has an automatic range of 0.5- 36V and 0 -5A. The maximum limits of current & voltage are calculated by Imax x Vmax = 80W.
Its operation voltage and current spectrum is larger than 3 conventional power supplies of the same power rating. The power supply is ideal for R&D laboratory, burn in test especially for devices where the effect of irregular DC wave forms are important.
Master & Slave configuration with SSP-9080 and SSP-9081 for parallel connection of multiple units up to 30 Unit
This multi-function auto range laboratory grade power supply is capable of generating various DC wave forms.
A micro-processor is used for such DC waveform. There are 10 voltage generators which can either be panel programmed or by PC via remote control port.
Remote Programming of repetitive cycling , control , monitoring and data logging can be done via the USB port.
With optional Ethernet card it is capable of Internet connectivity and control , monitor, data log over 250 supplies by one PC.
Application software of cyclic program , command sets , and Labview Drivers are provided. As a 80W Constant Power laboratory grade power supply it has an automatic range of 0.5- 36V and 0 -5A. The maximum limits of current & voltage are calculated by Imax x Vmax = 80W.
Its operation voltage and current spectrum is larger than 3 conventional power supplies of the same power rating. The power supply is ideal for R&D laboratory, burn in test especially for devices where the effect of irregular DC wave forms are important.
Master & Slave configuration with SSP-9080 and SSP-9081 for parallel connection of multiple units up to 30 Unit
- Saves money and space as one power supply covers V, A limits of few power supplies.
- Auto range selection with maximum 80W output

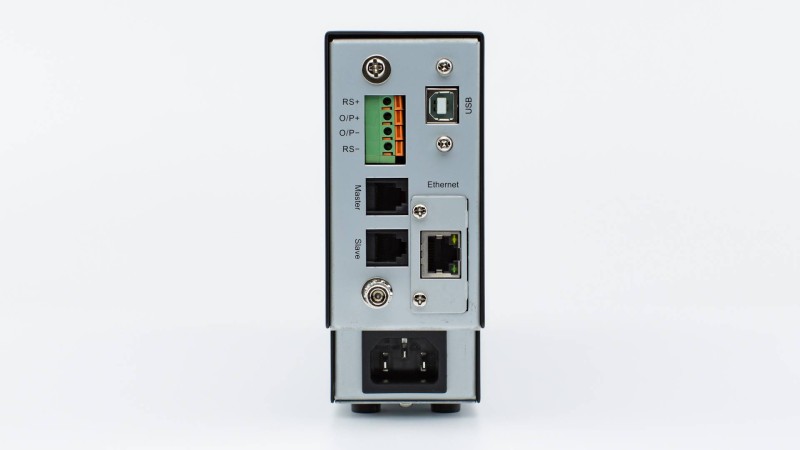

- Remote programmable through USB or optional LAN card
- 10 steps list program
- Support output Voltage range from 0.5 to 36V
- Support output Current range from 0 to 5A
- Adjustable upper voltage and current output levels to ensure safe operation
- 3 user presets of frequently used V and A outputs
- Master/Slave configuration for synchronization of the parallel connected output of multiple units.
- 4 digit display of voltage and current
- 10mV adjustment resolution for output Voltage
- 1mA adjustment resolution for output Current
- Output on-off switch and control panel lock button for safer operation
- Over Temperature, Over Current, Over Voltage and Short Circuit Protection
- Voltage remote sensing
